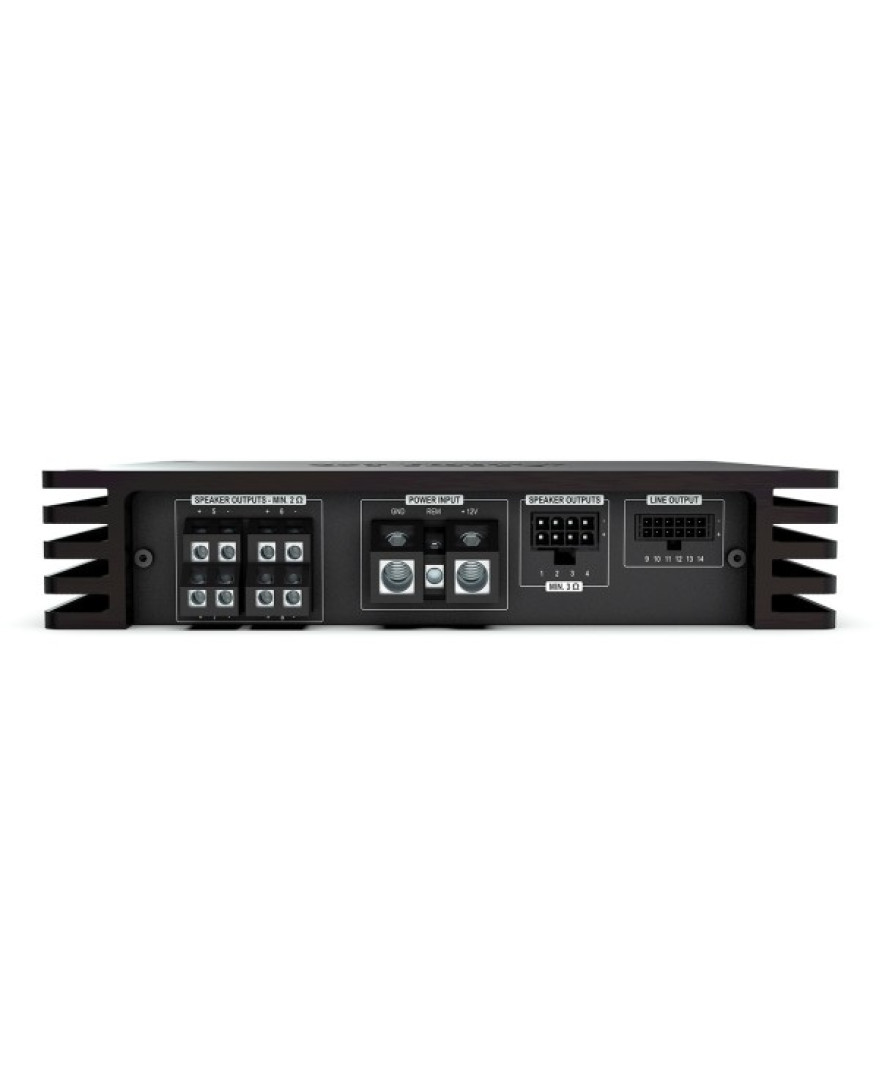

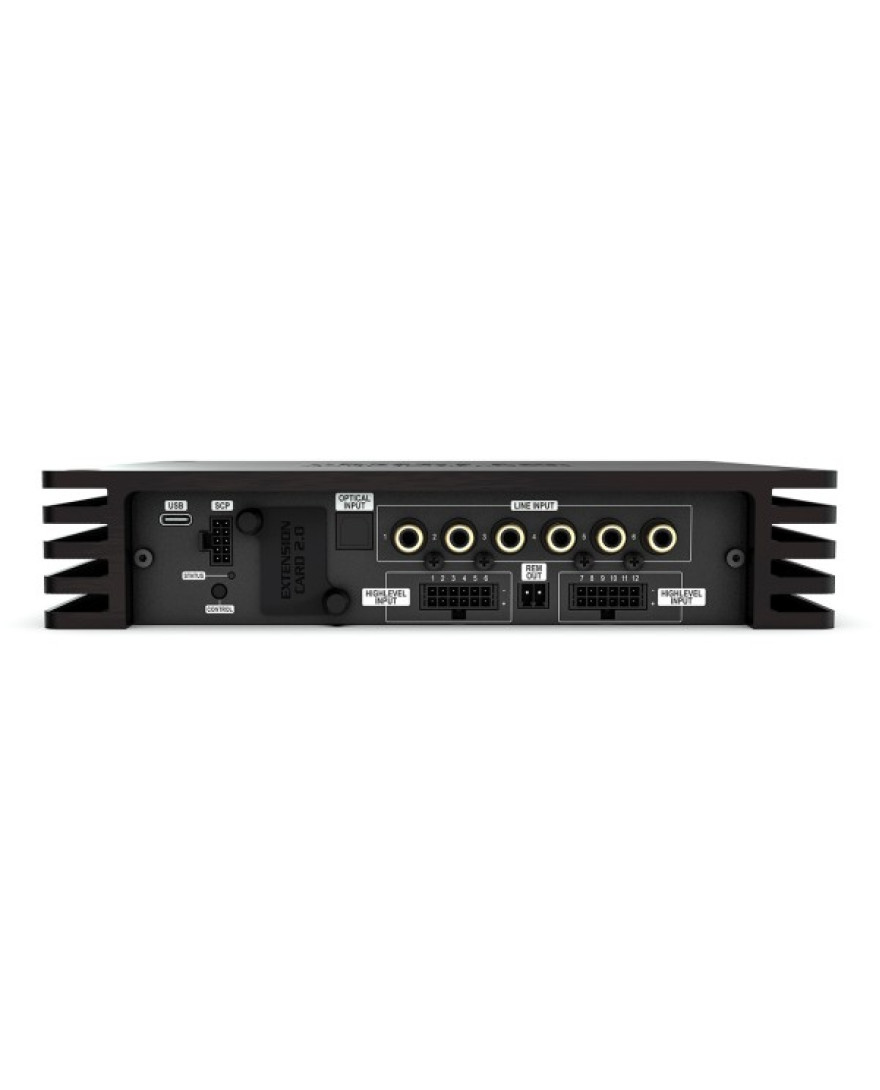

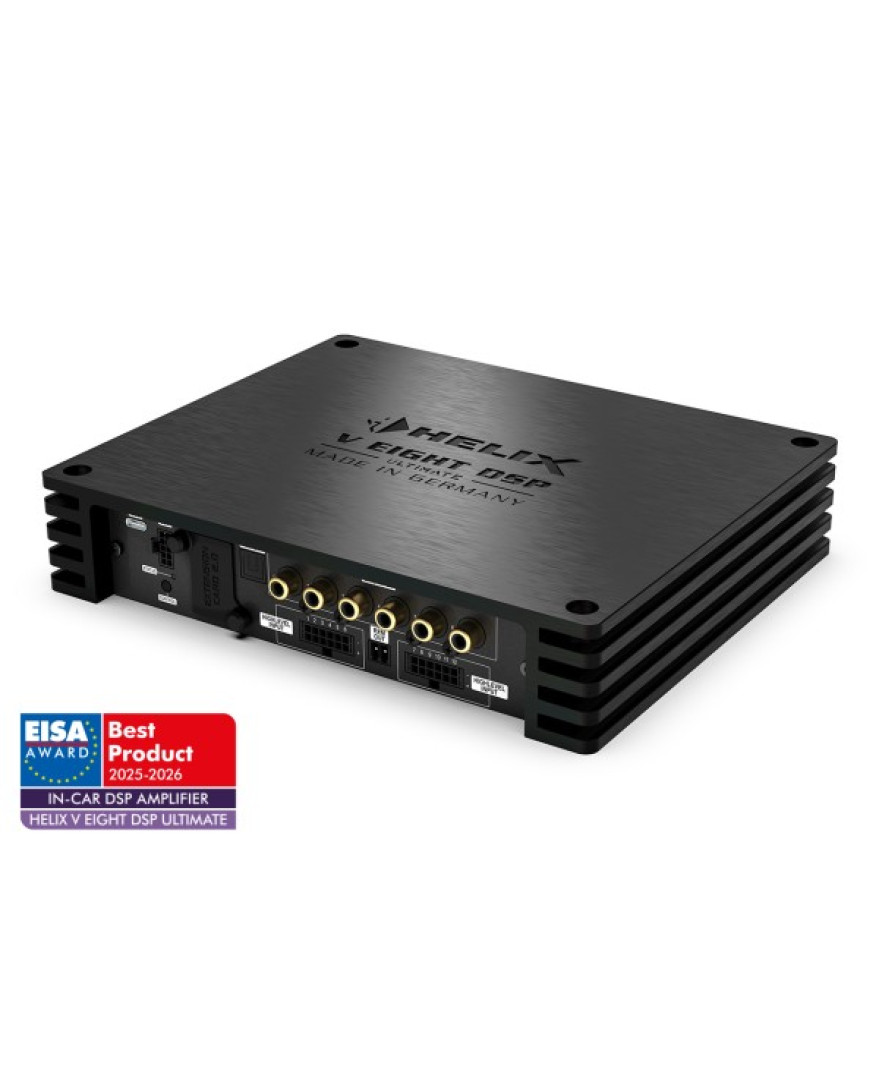

SKU: V-EIGHT-DSP-ULTIMATE
₹ 249,999
(inclusive of all taxes)
per Pcs
• 14 DSP channels for maximum flexibility with multi-channel sound upgrades
• 8-channel amplifier with latest Class HD concept, which combines excellent sound quality with outstanding efficiency
• High power 12-channel highlevel input with up to 32 V RMS input sensitivity and ADEP.3 circuit for seamless OEM integration
• 1:1 IOR (Input-to-Output Routing) – all highlevel inputs can be individually assigned to an amplifier or line output, allowing signal routing directly from input to output
• Up to 270 W RMS output power per channel into 2 Ω
• USB PerfectStream technology – lossless high-resolution audio streaming (up to 192 kHz / 32 Bit), AISA measurement (Advanced Input Signal Analyzer), and simultaneous DSP configuration via USB-C
• Extremely powerful “fixed point” Audio DSP with 64 Bit resolution
• VCP (Virtual Channel Processing) offers outstanding flexibility in configuring complex sound systems
• ACO – Advanced 32 Bit CoProcessor platform for system
• Compact, future-proof SCP (Smart Control Port) for connecting remote controls and accessories
• Extension Card 2.0 slot for system add-ons like Bluetooth® HD audio streaming, extra analog inputs, or future signal sources
• Optical digital input in SPDIF format and six processed line outputs with max. 3 Volts output voltage
• Stabilized Output Power technology (SOP Max) for consistently stable output power – delivering full performance at all times, regardless of input voltage
• Intelligent power management ensures perfect voltage stability across all modern vehicle platforms
• Start-Stop capable power supply with extended input voltage range up to 18 V – ideal for modern EV vehicles
• Auto Remote switch for amplifier activation without the need for an external remote signal
• Compact design with low heat dissipation thanks to extraordinary efficiency
• Maximum control with DSP PC-Tool 6 – professional software for precise amplifier configuration and accurate sound tuning in the vehicle
Secured
Payments
Fast &
Reliable delivery
Wide Selection
of Products
1 Year
Warranty
₹ 249,999
inclusive of taxes
| Brand: | Helix |
| Damping Factor: | 100 |
| Distortion (THD @ 1 kHz, 1 W into 4 Ohms): | < 0.007 % |
| Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms): | < 0.009 % |
| DSP power: | 295 MHz (1.2 billion MAC operations/second) |
| DSP resolution: | 64 Bit |
| DSP type: | Audio signal processor |
| Frequency response: | 15 Hz - 22,000 Hz |
| Fuse: | 2 x 40 A LP-Mini-fuse (APS) |
| Idle current: | 750mA |
| Max. remote output current: | 500 mA |
| Operating temperature range: | -40 °C to +70 °C |
| Operating voltage: | 10.5 - 18 Volts (max. 5 sec.down to 6 Volts) |
| Output voltage: | RCA / Cinch 3 Volts |
| Power rating: | DC 12 V ⎓ 110 A max. |
| Sampling rate: | 48 kHz |
